Sound absorption panels, also often referred to as acoustic panels, are materials specially designed to reduce or absorb sound waves in an indoor environment.
The primary purpose of sound absorption panels is to minimize echo, reverberation, and unwanted noise, creating a more acoustically pleasant and controlled environment. They are commonly used in spaces where sound quality and noise control are important, such as recording studios, home theaters, offices, restaurants, classrooms, and homes.
 |
 |
What is sound absorption?
Sound absorption is a process by which sound energy is absorbed or taken in by a material rather than being reflected back into the environment. When sound waves encounter a porous material that has sound-absorbing properties, they penetrate the material's surface.
This interaction causes air particles to move and creates friction. The kinetic energy of sound waves is converted into thermal energy (heat) due to this friction, resulting in the attenuation or reduction of sound energy, which is dissipated within the material. It results in a reduction in the sound's intensity and the prevention of excessive sound reflections inside the room.
Attention: sound absorption is not soundproofing
It's important to note that sound absorption panels primarily address sound reflections and reverberation inside the room, but may not provide comprehensive soundproofing or isolation from external noise. For soundproofing purposes (blocking noise from entering or leaving a space), additional measures such as acoustic insulation, acoustic doors, and acoustic windows are often required and need to involve construction work.
Key features of sound absorbers
Sound Absorption panels
Panels designed for sound absorption are made from materials that absorb sound waves, which enter the material and are converted into heat energy rather than being reflected back into the room.
Reduced Echo and Reverb
Sound absorption panels help reduce the echo and reverberation in a room by absorbing and dissipating sound energy. This can improve speech intelligibility and the overall acoustic quality of the space.
Noise Control
In addition to improving sound quality, sound absorption panels can also help control noise levels produced inside the room, by absorbing sound waves.
Aesthetic and Design
Many sound absorption panels come in various shapes, sizes, colors, and designs, allowing them to be integrated into the overall decor of a room. They can be mounted on walls, ceilings, or even freestanding, depending on the specific needs and aesthetics of the space.
Placement
Proper placement of sound absorption panels is essential to achieve the desired acoustic results. Panels are often strategically positioned on walls, ceilings, or corners based on the room's acoustics and the specific sound issues that need to be addressed.
Sound-absorbers according to the form and design
Wall-mounted sound-absorbers, such as Flat Panel VMT, Cinema VMT, made from VicPET wool, a non-wooven textile manufactured mostly from recycled plastic bottles, and Cinema Round Premium, composed of foam covered with fabric.
Ceiling-mounted sound-absorbers, such as Flat Panel VMT and Flat Panel PET.

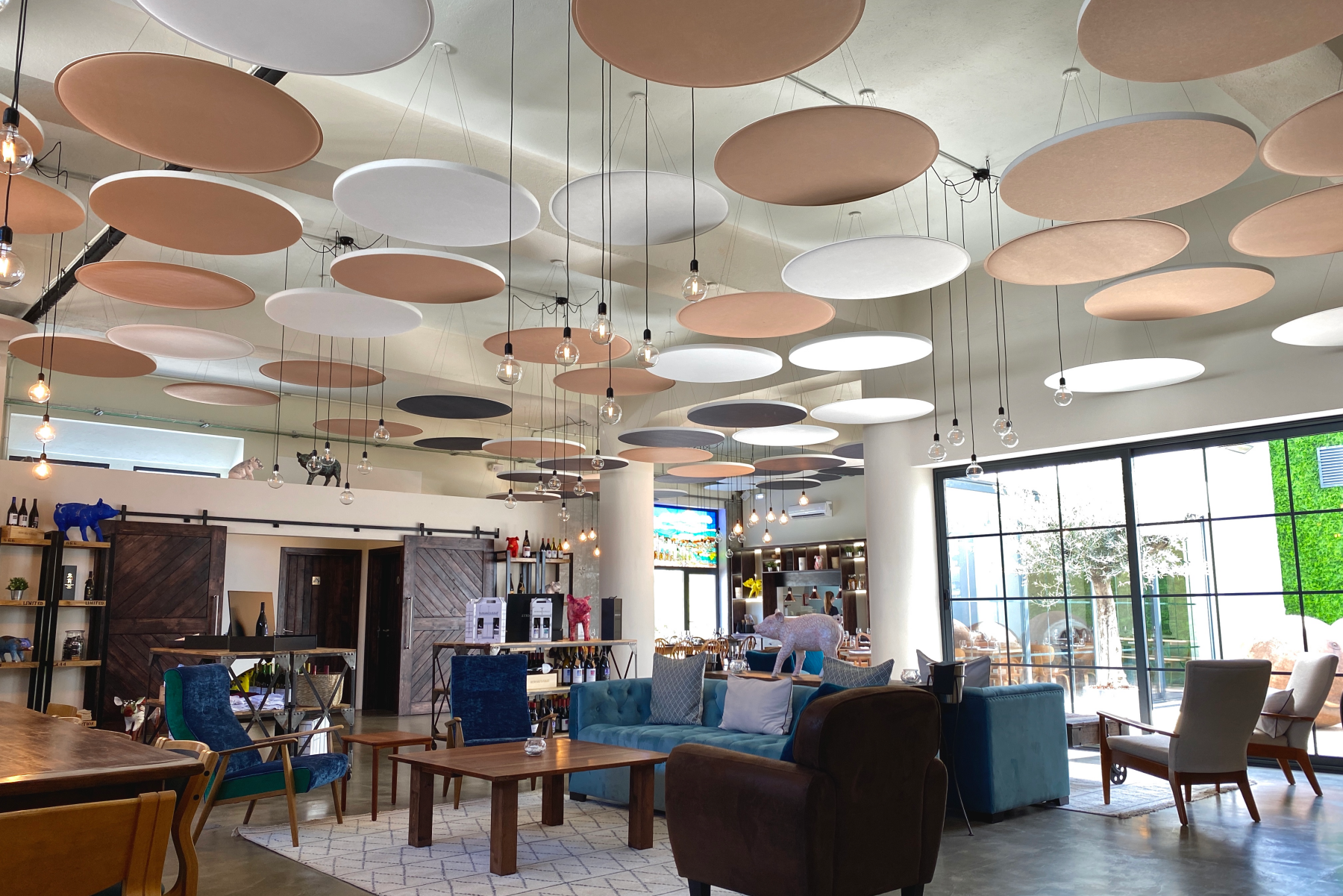

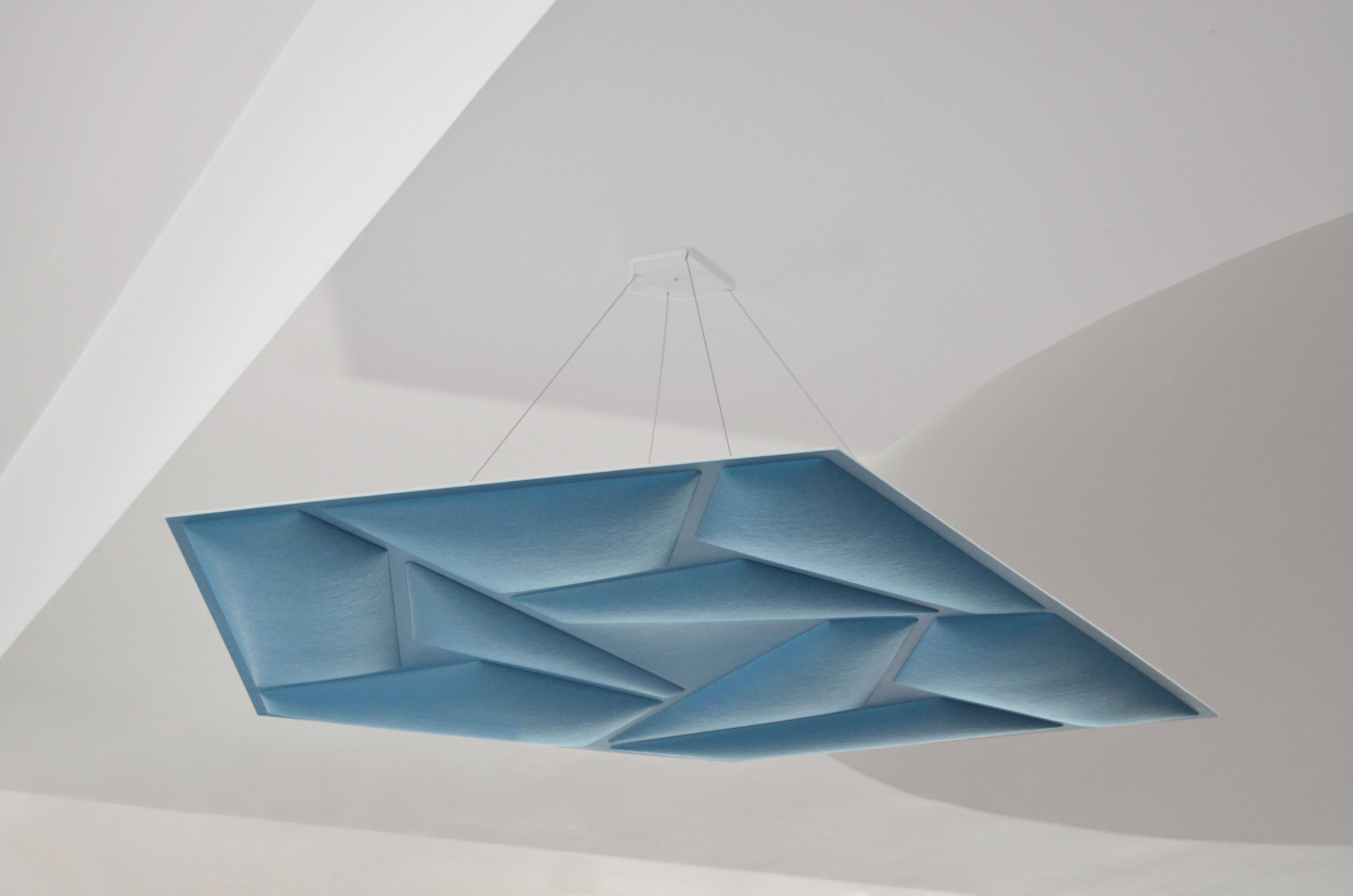

Ceiling suspended Clouds, such as ViCloud VMT 3D, ViCloud VMT Flat and GEN_VMT PENRAY 01 Cloud, all produced from eco-friendly VMT.
Ceiling suspended Baffles, such as Suspended Baffle VMT 3D and Suspended Baffle PET MKII.
Wall-mounted sound-absorbing tiles, such as Vixagon VMT.
Key points about sound absorption panels
Material Properties

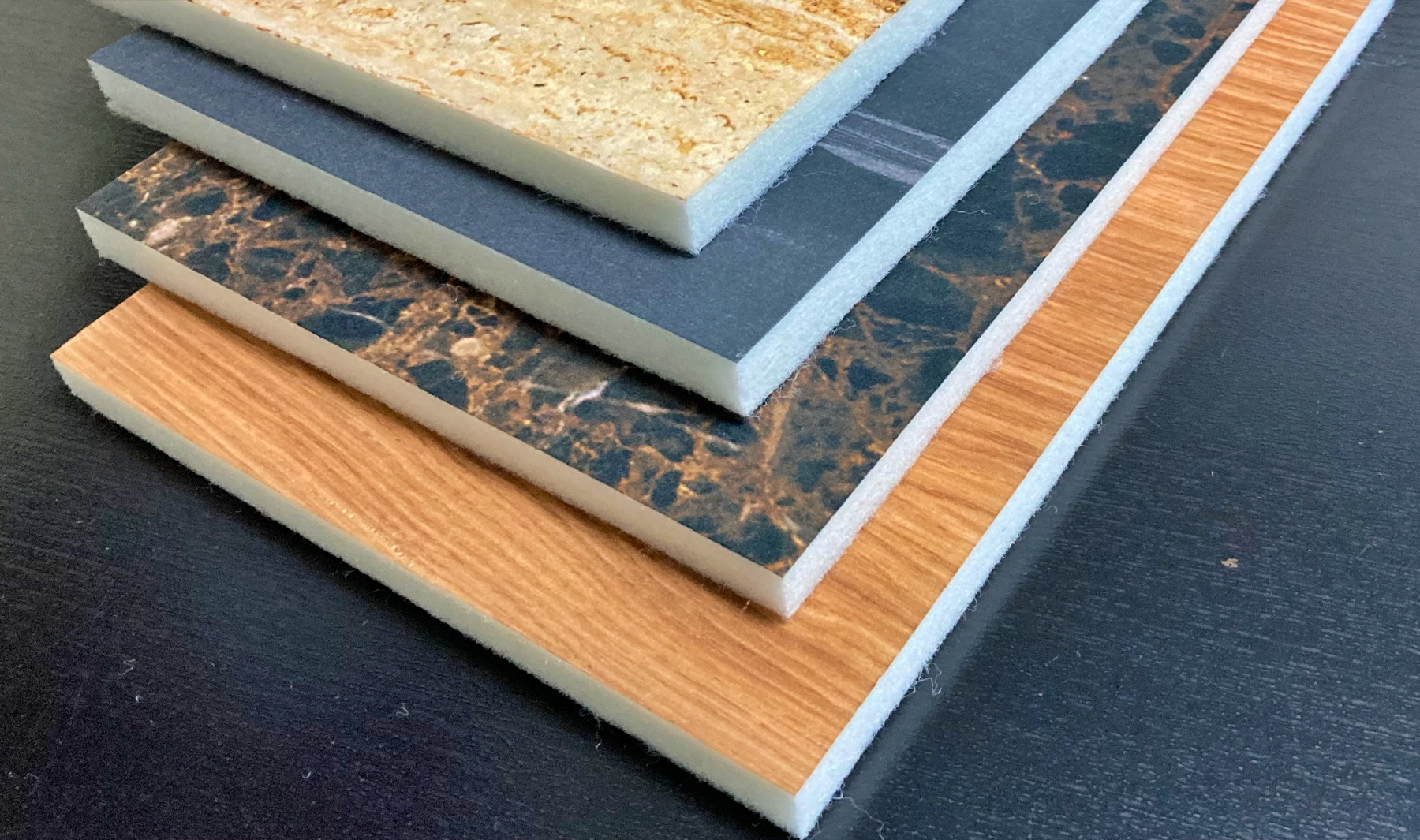

Sound-absorbing materials are typically porous or fibrous in nature. Examples include materials like foam, fiberglass, mineral wool, acoustic fabric, and new materials such as VicPET Wool, a solution mostly made from recycled plastic bottles enhanced for acoustic treatment developed by Vicoustic. These materials have the ability to trap sound energy and convert it into heat through friction and air movement within their porous structure.
Improving Acoustic Comfort: Sound absorption is crucial in spaces where acoustic comfort is important, such as concert halls, theaters, recording studios, classrooms, offices, and residential spaces. Proper sound absorption can enhance the overall acoustic experience in these environments.

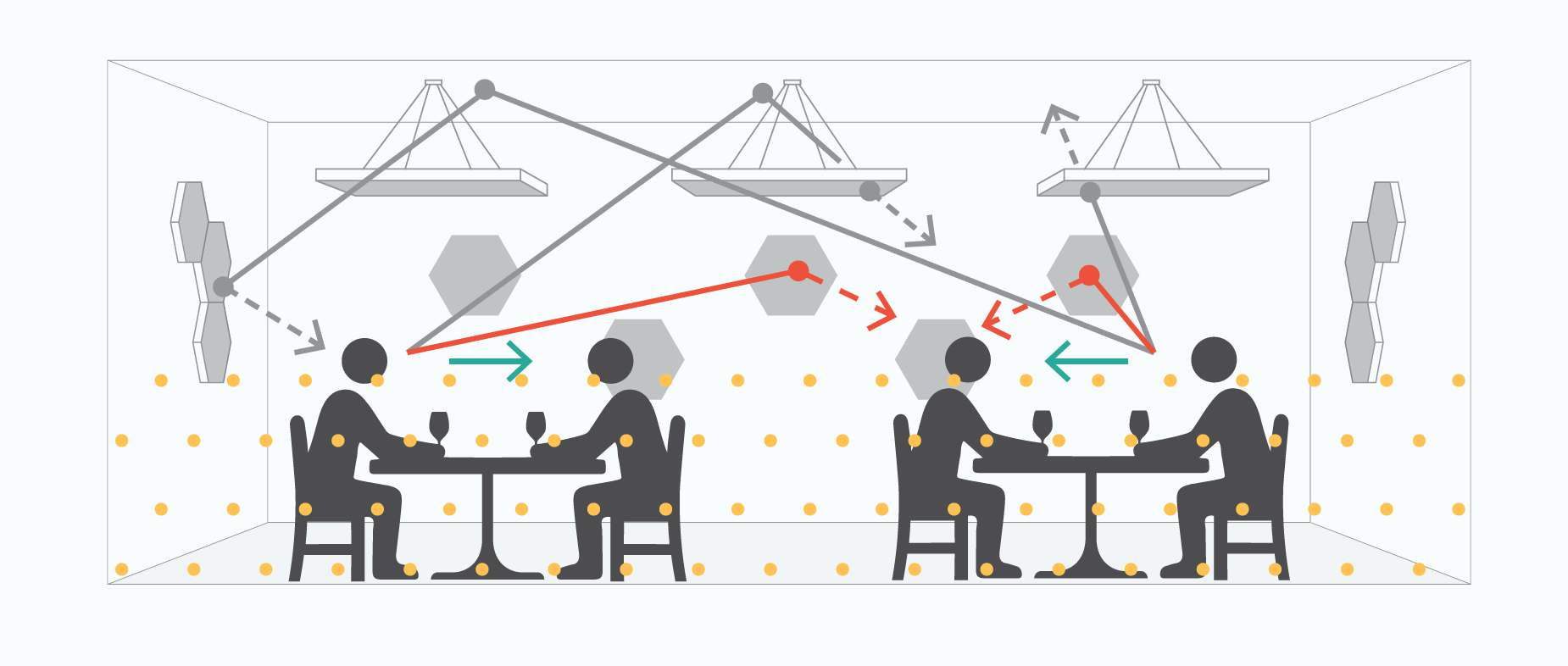

How is sound absorbed in an interior setting by sound absorbers?
Sound absorption in an interior setting occurs through a combination of physical and acoustic principles. Here's how sound absorption materials or structures work in such settings:
Material Porosity: The porous structure of most materials used for sound absorption panels has open spaces between fibers or within the material itself. When sound waves hit the surface of a porous material, they enter these open spaces.
Multiple Reflections: Within the porous structure, sound waves undergo multiple reflections and encounters with the material's surfaces. These reflections and internal scattering of sound waves further dissipate the energy, preventing them from bouncing back into the room.
Frequency-Dependent Absorption: The effectiveness of sound absorption depends on the frequency of the sound waves. Different materials and different thicknesses of the acoustic panels are designed to absorb sound at specific frequency ranges.
Placement: Proper placement of sound absorbers is crucial for maximizing their effectiveness. Panels or materials are strategically positioned on walls, ceilings, and other surfaces based on the room's acoustics and the specific sound issues that need to be addressed. Placing sound absorbers at reflection points and areas with high sound activity enhances their performance.
Coverage and Density: The amount and density of sound absorbers in a space impact their absorption capabilities. Increasing the coverage of absorptive materials and using thicker materials can enhance the performance of sound absorption panels.
Tuning and Design: Acoustic designers often select or customize sound absorbers to meet the acoustic goals of a specific space. The design of sound absorbers may include features like perforations, surface textures, and decorative finishes to blend with the aesthetics of the environment. You can request a project to Vicoustic's professional team of acousticians.
Testing and Measurement: Sound absorption performance is quantified using different metrics such as Sound Absorption Coefficient (α) or Noise Reduction Coefficient (NRC) for example. These metrics indicate how effectively a material or panel absorbs sound across different frequencies.
Overall, sound absorbers work by allowing sound waves to enter the material, dissipating their energy through air friction and multiple reflections within the porous structure. This process significantly reduces sound reflections and reverberation within an interior space, leading to improved acoustic comfort and quality.
How to avoid the room sounding too dead when using sound absorbers?
Achieving the right balance of acoustics in a room when using sound absorbers is essential to avoid making the space sound overly "dead" or devoid of natural acoustic qualities. Here are some strategies to prevent a room from sounding too dead when using sound absorbers:
Use Diffusers: Incorporate sound diffusers in addition to sound absorbers. Diffusers scatter sound waves in various directions, which helps to maintain a sense of liveliness in the room while reducing sound reflections. This can be especially important in spaces like recording studios or home theaters, where some degree of natural sound diffusion is desired.

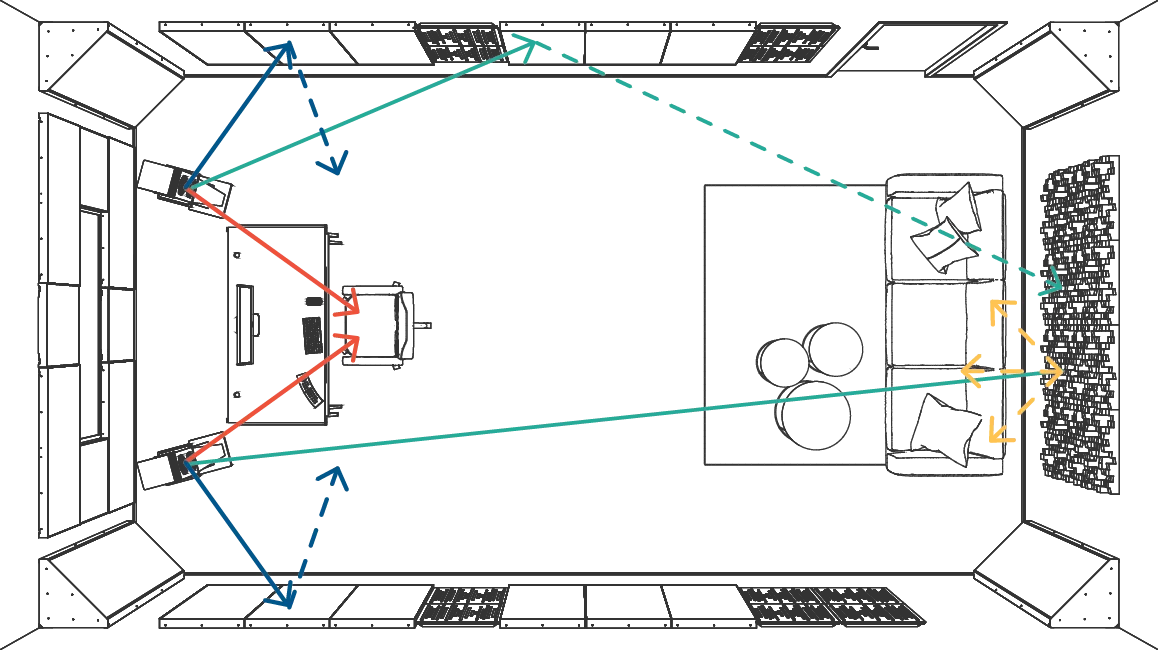

Selective Placement: Strategically place sound absorbers rather than covering all surfaces. Identify primary reflection points where sound tends to bounce off, and focus on treating those areas. Leave some reflective surfaces or diffusive elements in the room to maintain a sense of spaciousness.

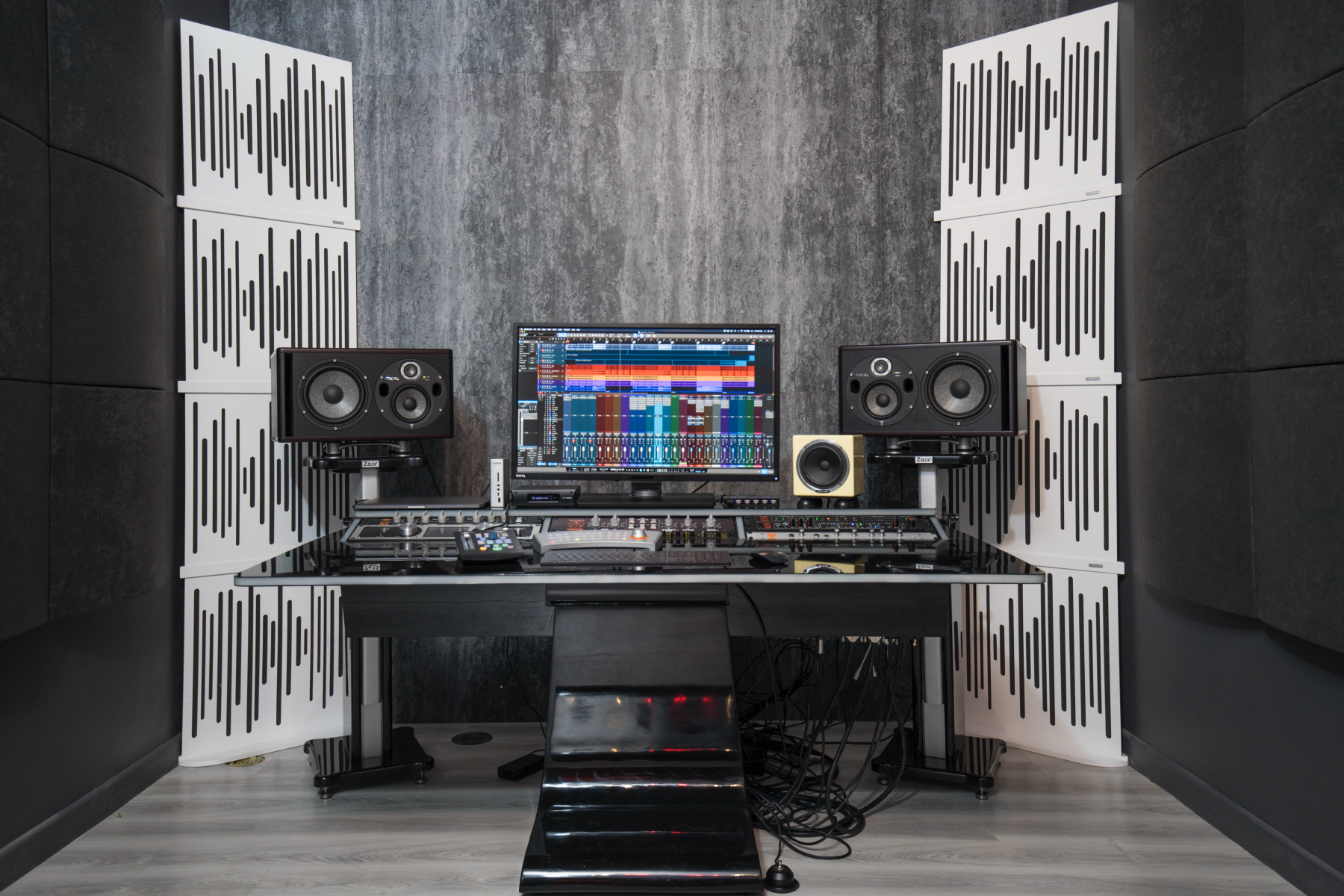

Variable Acoustic Panels: Consider using variable or adjustable acoustic panels that can be tuned to different absorption levels. These panels allow you to modify the room's acoustics according to your needs. You can increase absorption when necessary and reduce it for a livelier ambiance. One example of this VicTotem Ultra VMT, with variable faces in VMT for sound absorption and a high-pressure laminate side for scattering sound.
Combination of Materials: Use a combination of sound absorbers with varying absorption coefficients. Some areas can feature high-absorption materials, while others can have materials with lower absorption properties. This mix helps create a balanced acoustic environment.
Controlled Use of Reflective Surfaces: Maintain some reflective surfaces in the room, such as hardwood floors, glass windows, or smooth-surfaced walls. These surfaces can bounce sound waves and prevent the space from feeling too dead. However, make sure the reflections are controlled to avoid excessive echo or harshness.

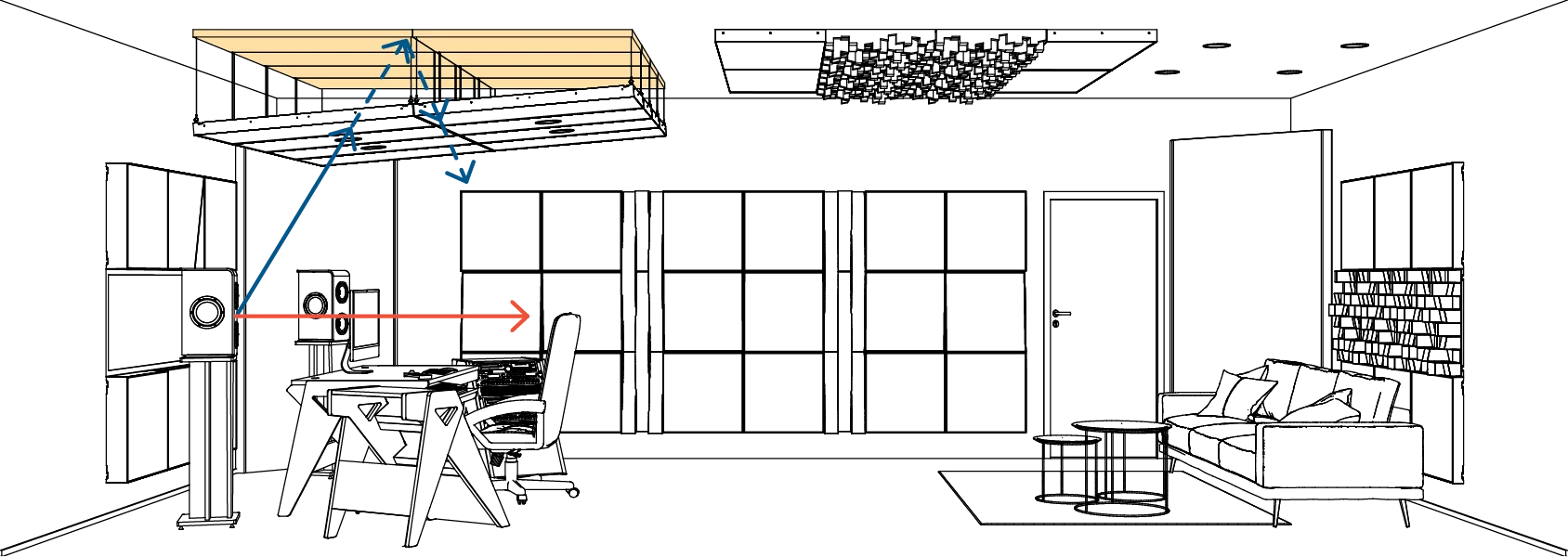

Ceiling Treatments: Focus on the ceiling when applying sound absorbers. This is often an overlooked area but can have a significant impact on the room's acoustics. Combining ceiling absorbers with other treatments can maintain a sense of height and openness.
Acoustic Design Consultation
Consult with an acoustic engineer or designer who specializes in room acoustics. They can perform acoustic simulations and measurements to help you make informed decisions about the placement and type of sound absorbers needed for your specific space.
Testing and Adjustment: After installing sound absorbers, listen to the room and make adjustments as needed. Fine-tuning the acoustics may involve adding or removing absorptive materials until you achieve the desired balance between absorption and reflection.
Room Size and Volume: Smaller rooms tend to benefit from more controlled acoustics, while larger spaces may require a mix of absorption and diffusion to maintain a sense of spaciousness.
Balancing the acoustics in a room with sound absorbers requires careful planning and consideration of the room's intended use, aesthetics, and desired acoustic qualities. By incorporating a mix of absorption, diffusion, and reflection, you can create an acoustically pleasing environment that avoids the feeling of a "dead" space.
To get a professional project with a case study for a specific room, you can request a project from a team of acousticians and designers.
